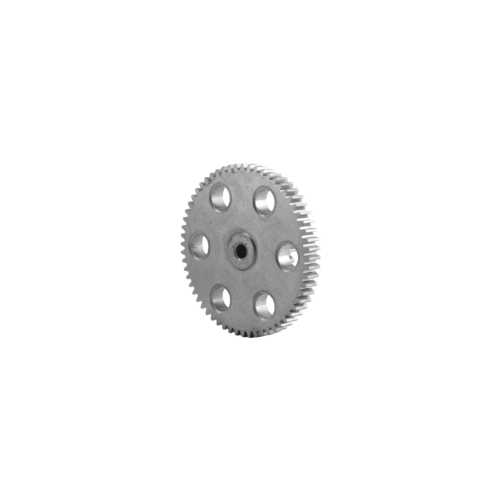

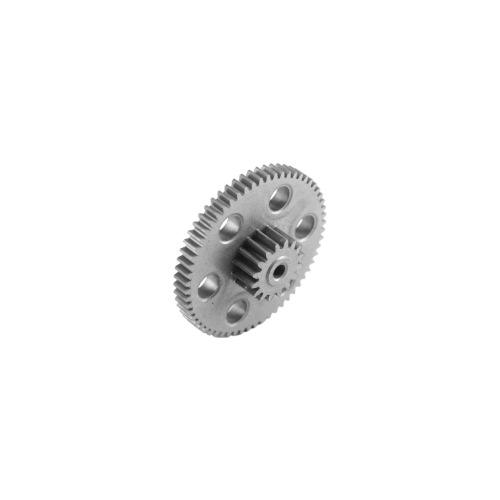

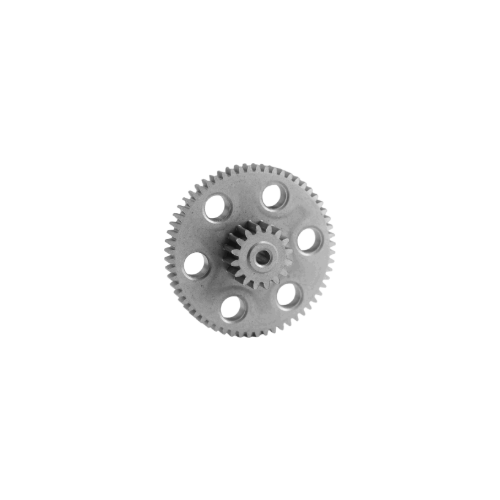

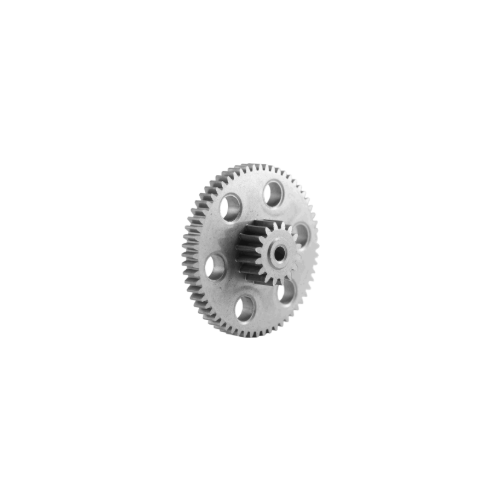

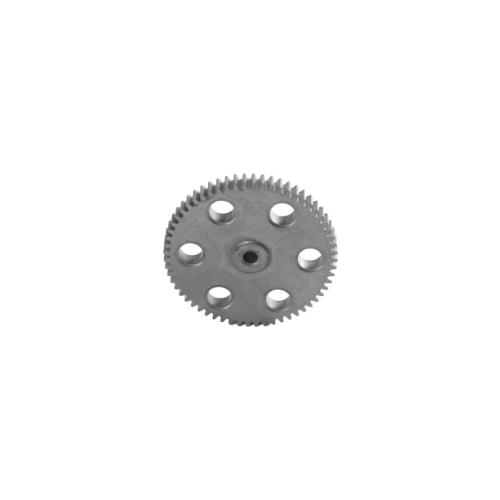

Double Spur Gear

Double spur gears consist of two spur gear profiles of different diameters integrated into one component, commonly used in stepped gear trains. Guangming Group produces these gears using multi-level compaction tools to achieve distinct tooth modules and diameters with high precision. The PM process ensures strong metallurgical bonding between the two gear sections, resulting in excellent torsional strength and fatigue resistance. Our doublespur gears are widely applied in automotive seat adjusters, window regulators, household appliance gearboxes, and office automation equipment, offering reliable performance and cost efficiency.

Product Parameter (Specification)

Product Feature And Application

The cost advantage of producing iron-based double spur gears using powder metallurgy is most evident in large-scale production, driven primarily by three factors: high material utilization, minimal machining, and high production efficiency. The larger the production volume, the more significant the cost advantage.

(1) Traditional processes have a material utilization rate of only 40% to 70%, with significant losses due to forging flash and machining chips; powder metallurgy uses quantitative powder filling, resulting in a utilization rate of over 95%.

(2) Powder metallurgy allows for the simultaneous pressing of the double spur gear, shaft hole/keyway, and other structures in a single step, requiring only minimal finishing. This eliminates multiple gear hobbing, milling, and drilling processes, saving significant costs in tooling, machine time, and manual handling. In contrast, the machining time for just the double gear portion in traditional processes accounts for over 60% of the total cost per piece.

Production Details
